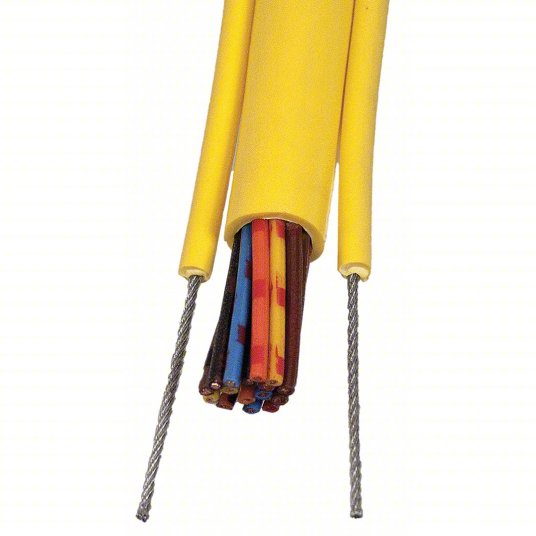

Pendant cable for control or feeder applications in lifts and hoists. The two steel load bearing elements can be detached withoutdamaging the outer sheath and fixed independently from the cable gland. Two steel cores run parallel to the outer sheath. Offers high flexibility at lower temperatures. These cables are not suitable for drum reeling installations.
Pendant hoist cables are manufactured for use in heavy industry, for use alongside other crane cables, in operations including mining, quarrying, and the construction industry. Our Pendant Hoist control cables are designed to operate under high mechanical stresses, as well as torsion, torque and tension.
H07RN-F Cable 2PNCT Cable SJOOW/SOOW/SJO Cable Submersible Pump Cable Trailing Cable with Optical Fiber Composite Reeling/Festoon Crane Cable Welding Cable Pendant Hoist Cable Elevator Traveling Cable Spreader Basket Cable VFD CableTemperature Rating:
• Without External Stain Relief: -10O C to 90O C (14O F to 194O F)
• With External Strain Relief: -10O C to 105O C (14O F to 221O F)

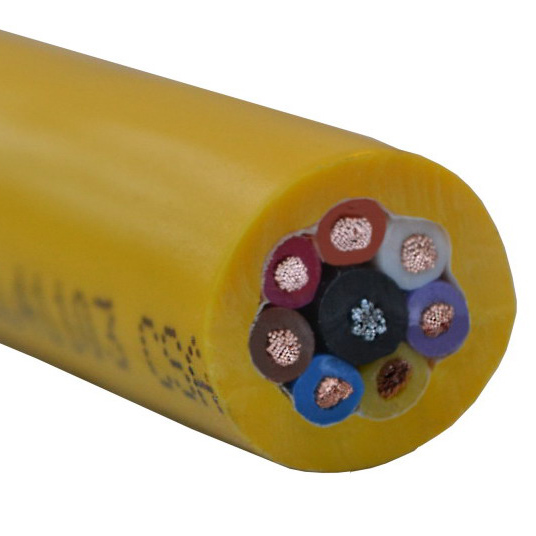

8~24 Cores Pendant Hoist Control Cable with Internal Strain Relief
Voltage: 300/500V
Conductor: Fine stranded bare/tinned copper
Cores: 8~24 cores
Insulation: XLPE
Lay Up: Cores laid up in concentric layers
Core color: Black cores with white numbers.
Outer sheath: PVC
Suspension Support: Galvanized steel wire ropes at both sides
Sheath color: Yellow, Black or other
Pulling Force: 2100 N for each steel core
Maximum Suspended Height: 80 meters
8~36 CoresPendant Hoist Control Cable without Internal Strain Relief
Voltage: 300/500V
Conductor: Fine stranded bare/tinned copper
Cores: 8~36 cores
Insulation: XLPE
Lay Up: Cores laid up in concentric layers
Core color: Black cores with white numbers.
Outer sheath: PVC
Suspension Support: Galvanized steel wire ropes at both sides
Sheath color: Yellow, Black or other
Pulling Force: 2100 N for each steel core
Maximum Suspended Height: 80 meters

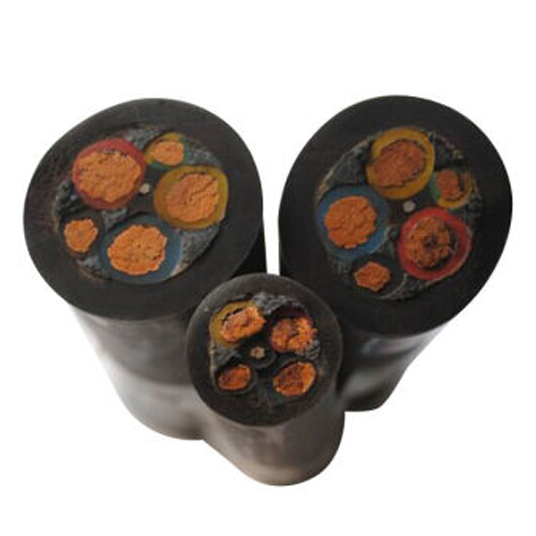

450/750V Passenger Hoist Rubber Cable
Rated voltage: Uo/U: 450/750 V
Conductor material: Bare copper
Core insulation: CPE
Stranding: stranded in layers
Outer sheath: CPE
Lay filler: Center filler bar
Braid material: Polyester
Operat. temp. fixed min/max: –40 °C / +60 °C
Operat. temp. moved min/max: -30 °C / +60 °C
Temp. at conductor: +60 °C
Burning behavior: acc. to IEC 60332-1
Application: Use in dry, humid, wet locations, for outdoor use, and it is designed for passenger hoist use.

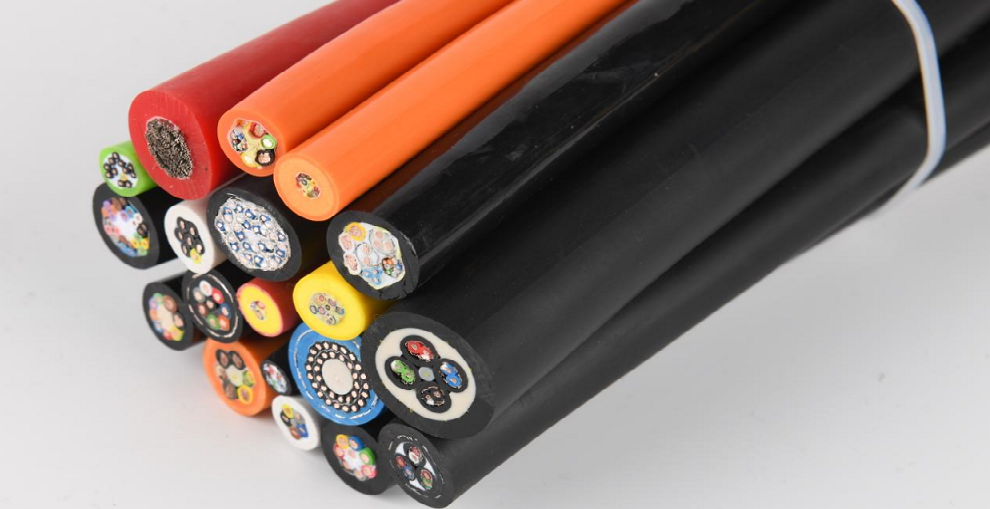

Recommended common rubber cables for large machinery
PUR-HF Low Voltage Chain Festoon Cable
Voltage Rating (Uo/U): 0.6/1kV
Conductor: Class 5 flexible tinned copper
Insulation: HF (Halogen Free) compound based on polyester
Outer Sheath:
TPU, PUR HFFR (Polyurethane – Halogen Free, Flame Retardant)
Temperature Rating:
Fixed installation: -50°C to +80°C
Mobile operation: -40°C to +80°C
Cores: 3,4,5
Section aera: 1.5mm2-185mm2
Application: For use as energy and control cable in festoon systems and as a chain cable. Also suitable as drum reeling cable under moderate mechanical stresses, torsion, tension and torque.
PUR/TPU Spreader LV Reeling Cable
Voltage Rating (Uo/U): 0.6/1kV
Conductor: Class 5 flexible tinned copper
Insulation: Halogen free compound based on polyester
Lay Up: Central Aramid strength member, cores in concentric layers
Inner and Outer Sheath: TPU, PUR-HF (Halogen Free, flame retardant Polyurethane)
Braiding: Anti-twisting element – Aramid yarns braiding
Sheath Colour: Black, Yellow or Orange.
Reeling Application: Up to 240m/min horiz. / Up to 180m/min vertica
Application: Vertical reeling cable under high mechanical stresses, torsion, tension and torque. Mainly used for spreader reeling applications. Strength member to increase tensile load, acceleration and speed
Medium Voltage Material Handling Equipment (N)TSCGEWÖU Cable
Voltage Rating (Uo/U):
3.6/6kV; 6/10kV, 8.7/15kV, 12/20kV.
Phase/Earth Conductor:
Class 5 flexible tinned copper/Copper
Insulation: Rubber compound
Inner Sheath: Rubber compound
Section area: 25-185mm2
Cores: 3+3
Maximum Short Circuit Temperature: 250°C
Mobile Condition: +25°C to + 80°C
Static Condition: +40°C to + 80°C
Application: Flexible cable for fixed distribution lines in mines and alongside material handling equipment. Suitable for indoor and outdoor applications
