In industrial applications, sophisticated motions increasingly need highly flexible cables that can be twisted. It requires copper core, shielding, and sheath material must withstand the extrusion force and radial pressure caused when the cable bends and twists. PUR sheath material significantly protects the inside components from damage when the cable is twisted. This cable is suitable for an industrial robot, manipulator arm, and other movable applications. As per testing results, the maximum torsion angle can be 270°and the bending cycle is 3 million times. Huadong Cable Group can customize all kinds of special cables according to customers’ needs.
Robot flexible cable
Conductor: bare copper
Core number: 4 cores
Insulation material: polyethene
Sheath material: polyurethane
Color: Orange
Application: manipulator arms & industrial robot
Description:
The cable is composed of 4 power supply conductors. Polyurethane is abrasion resistant and torsion resistant, so it is very suitable for industrial robot applications.
Core number: 4 cores
Insulation material: polyethene
Sheath material: polyurethane
Color: Orange
Application: manipulator arms & industrial robot
Description:
The cable is composed of 4 power supply conductors. Polyurethane is abrasion resistant and torsion resistant, so it is very suitable for industrial robot applications.
Anti-torsion robot cable
Conductor: Fine stranded bare/tinned copper acc. to EN 60228 standard.
Wire gauge: 28AWG to 4AWG
Insulation: PE
Shielding: Tinned copper braiding
Core color: TBD acc. to DIN 47100 standard.
Outer sheath: low adhesive PUR (polyurethane)
Sheath color: Yellow
Rated voltage: 300/500V (Acc. to DIN VDE 0245)
Testing volatge: 2000V (Acc. to DIN VDE 0281-2)
Temperature range: -25℃ till +80℃
Operating temperature: -25℃ till +80℃
Bending radius: Fixed installation 4xOD, In motion 10xOD
Movable speed: 180°/S
Oil resistance: Yes (Acc. to DIN EN 50363-10-2)
Wire gauge: 28AWG to 4AWG
Insulation: PE
Shielding: Tinned copper braiding
Core color: TBD acc. to DIN 47100 standard.
Outer sheath: low adhesive PUR (polyurethane)
Sheath color: Yellow
Rated voltage: 300/500V (Acc. to DIN VDE 0245)
Testing volatge: 2000V (Acc. to DIN VDE 0281-2)
Temperature range: -25℃ till +80℃
Operating temperature: -25℃ till +80℃
Bending radius: Fixed installation 4xOD, In motion 10xOD
Movable speed: 180°/S
Oil resistance: Yes (Acc. to DIN EN 50363-10-2)

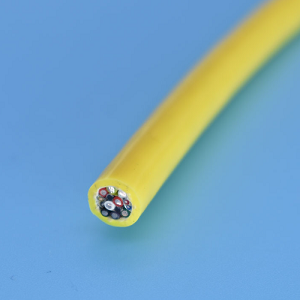

Pipe camera tether cable
Conductor: tinned copper
Core number: 12 cores
Insulation material: polyethene
Sheath material: polyurethane
Strength member: Kevlar fiber
Shielding: Aluminum foil+drain wires
Breaking strain: 100kgf
Overall diameter: 8mm
Color: Yellow
Application: pipe crawler tether & camera tether
Core number: 12 cores
Insulation material: polyethene
Sheath material: polyurethane
Strength member: Kevlar fiber
Shielding: Aluminum foil+drain wires
Breaking strain: 100kgf
Overall diameter: 8mm
Color: Yellow
Application: pipe crawler tether & camera tether
