Type P Marine Cable for Offshore Oil Drilling
Cable type: Power cable, Instrumentation&Conrol Cable, VFD Cable
Type P marine cable was designed and constructed for the demanding environments of offshore drilling and petroleum facilities use in a multitude of harsh environments both offshore and onshore. These cables are available in power, control, instrumentation, communication and VFD construction and built to be oil and abrasion resistant with great flexibility for easy installation. Huadong Cable Group's Type P is flame retardant and we can offer Mud-Resistant and Fire-Resistant cable as well.

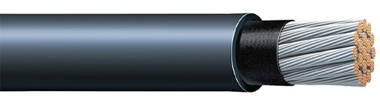

0.6/1kV 1-5Cores Unarmoured Flexible Copper Type P Marine Power Cable
Voltage:0.6/1kV or 2kV
Cores: 1-5 cores
Conductor: flexible stranded tinned annealed copper wire
Insulation: XLPO
Armoured: Unarmoured
Sheath:NBR(Neoprene Type N)
Features:
Resistant Oil, abrasion, moisture, petrochemical and sunlight.

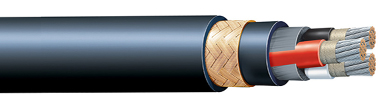

0.6/1kV 1-5Core Armoured Flexible Copper Type P Marine Power Cable
Voltage:0.6/1kV or 2kV
Cores: 1-5 cores
Conductor: flexible stranded tinned annealed copper wire
Insulation: XLPO
Armored: copper wire braid
Sheath: NBR(Neoprene Type N)
Features:
Resistant Oil, abrasion, moisture, petrochemical and sunlight.

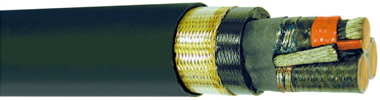

5kV-15kV MMV 3 Core Flexible Copper Type P Marine Power Cable
Voltage: 5kV, 8kV, 15kV
Cores: 3 Core
Conductor: flexible stranded tinned annealed copper wire
Insulation: EPR(100% &133% Insulation levels)
Armored: copper wire braid
Jacket/Sheath: NBR(Neoprene Type N)
Features:
Resistant Oil, abrasion, moisture, petrochemical and sunlight.

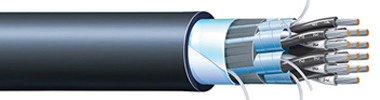

Unarmoured IS+OS Shield Type P Marine Insturmentation Cable
Voltage: 0.6/1kV
Size: 14~18AWG
Pairs: 2~24 Pairs or
Conductor: flexible stranded tinned annealed copper wire
Insulation: XLPO
Individual shield: AL/PS Tape W/Tinned Copper drain wire
Overall shield: AL/PS Tape W/Tinned Copper drain wire
Outer Sheath: NBR(Neoprene Type N)
Features: Resistant Oil, abrasion, moisture, petrochemical and sunlight.
Application: Designed for the demanding environments of offshore drilling and petroleum facilities

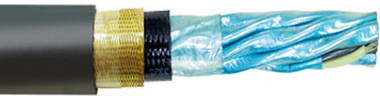

Pairs Individually Shield Armoured Type P Marine Instrmentation Cable
Voltage: 0.6/1kV
Size: 14~18AWG
Pairs: 1~24 Pairs or
Conductor: Tinned copper class 5
Pairs: tinned drain wire and polyester-backed aluminum foil tap
Insulation: Flame retardant polyolefin
Individual shield: AL/PS Tape W/Tinned Copper drain wire
Armored: Tinned copper basket weave wire
Outer Sheath: thermosetting compound
Application: Designed for the demanding environments of offshore drilling and petroleum facilities

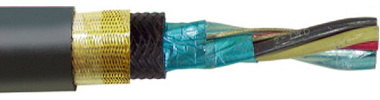

Triads Individually Shield Armoured Type P Marine Instrmentation Cable
Voltage: 0.6/1kV
Conductor: tinned copper, class 5
Size AWG: 16-18AWG
Number of pairs: 1-12 pars
Insulation: Flame retardant polyolefin
Triads: tinned drain wire and polyester-backed aluminum foil tap
Jacket: chemical and thermosetting compound
Armor(Optional): Tinned copper basket weave wire
Sheath: chemical and thermosetting compound
Application: Designed for the demanding environments of offshore drilling and petroleum facilities

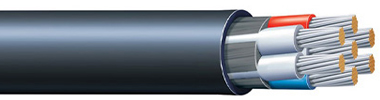

0.6/1kV Unarmouired Non-shield Type P Flexible Marine FR-Control Cable
Voltage: 0.6/1kV
Cores: 2~60 cores
Size: 16~18AWG
Conductor: tinned copper class 5
Insulation: XLPO
Jacket: NBR(Neoprene Type N)
Features: Resistant Oil, abrasion, moisture, petrochemical and sunlight.

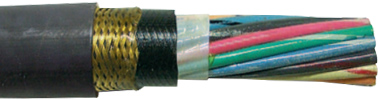

0.6/1kV Armoured Non-shield Type P Flexible Marine Control Cable
Voltage: 0.6/1kV
Conductor: Flexible tinned copper wire Class 5
Cores: 2~60 cores
Size: 16~18AWG
Insulation: XLPO
Jacket/Sheath: NBR(Neoprene Type N)
Features: Resistant Oil, abrasion, moisture, and sunlight.

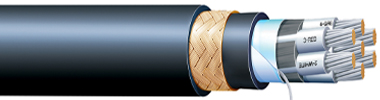

0.6/1kV Armoured Shield Type P Felxible Marine Control Cable
Voltage: 0.6/1kV
Conductor: Flexible tinned copper wire Class 5
Cores: 2~60 cores
Size: 16~18AWG
Insulation: XLPO
Shield: AL/PS Tape W/Tinned Copper drain wire
Jacket/Sheath: NBR(Neoprene Type N)
Features: Resistant Oil, abrasion, moisture, and sunlight.
2kV Braid Shield Unarmoured Type P Flexible Marine VFD Cable
Voltage: 2kV
Conductor: tinned copper class 5
Cores: 3+3
Size: 3G x 4~18AWG
Insulation: XLPO
Ground Conductor: Tinned Copper wire
Overall Braid shield: tinned copper wire
Jacket/Sheath: NBR(Neoprene Type N)
Features: Resistant Oil, abrasion, moisture, and sunlight.

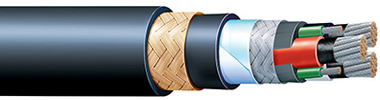

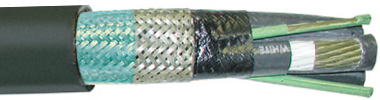

2kV Braid Shield Armoured Type P Flexible Marine VFD Cable
Voltage: 2kV
Conductor: tinned copper class 5
Cores: 3+3
Size: 3G x 4~18AWG
Insulation: XLPO
Ground Conductor: Tinned Copper wire
Overall Braid shield: tinned copper wire
Armoured: bronze wire braid
Jacket/Sheath: NBR(Neoprene Type N)
Features: Resistant Oil, abrasion, moisture, and sunlight.

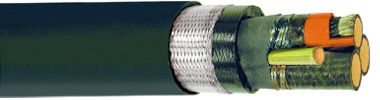

5/8kV Braid Shield Armoured Type P Felxible Marine VFD Cable
Voltage: 5-8kV
Conductor: tinned copper wire Class 5
Cores: 3+3
Size: 16~18AWG
Insulation: EPR
Insulation shield: tinned copper wire braid
Armoured: Overall tinned copper braid
Jacket/Sheath: thermosetting compound
Features: Resistant Oil, abrasion, moisture, and sunlight.
| Size | Unarmored | Armored (B) | Armored and Sheath (BS) | Ampacity | ||||||
| AWG | mm2 | Diameter (inches) | Weight (lbs/ MFt.) | Diameter (inches) | Weight (lbs/ MFt.) | Diameter (inches) | Weight (lbs/ MFt.) | |||
| 110°C | 100°C | 95°C | ||||||||
| 16 | 1.3 | 0.402 | 97 | 0.452 | 160 | 0.62 | 222 | 17 | 16 | 16 |
| 14 | 2.1 | 0.438 | 126 | 0.488 | 196 | 0.65 | 262 | 27 | 25 | 22 |
| 12 | 3.3 | 0.486 | 170 | 0.536 | 247 | 0.668 | 319 | 33 | 31 | 27 |
| 10 | 5.2 | 0.585 | 267 | 0.635 | 361 | 0.788 | 458 | 44 | 41 | 36 |
| 8 | 7.6 | 0.71 | 375 | 0.76 | 489 | 0.93 | 668 | 56 | 52 | 48 |
| 6 | 12.5 | 0.795 | 563 | 0.845 | 661 | 1.04 | 872 | 75 | 70 | 64 |
| 4 | 21 | 1.04 | 898 | 1.1 | 1066 | 1.295 | 1272 | 99 | 92 | 85 |
| 2 | 34 | 1.191 | 1358 | 1.241 | 1476 | 1.472 | 1734 | 131 | 122 | 113 |
| 1 | 43 | 1.37 | 1732 | 1.42 | 1817 | 1.61 | 2222 | 153 | 143 | 131 |
| 1/0 | 54 | 1.47 | 2042 | 1.52 | 2278 | 1.775 | 2642 | 176 | 164 | 152 |
| 2/0 | 70 | 1.61 | 2715 | 1.66 | 2807 | 1.914 | 3441 | 201 | 188 | 175 |
| 3/0 | 86 | 1.786 | 3234 | 1.836 | 3333 | 2.103 | 3781 | 234 | 218 | 202 |
| 4/0 | 109 | 1.985 | 4043 | 2.035 | 4376 | 2.304 | 4957 | 270 | 252 | 235 |
| Size | Unarmored | Armored & Sheathed (BS) | Ampacity | DC Resistance at 25°C (ohms/1000 ft.) | Grounding Conductor | |||
| AWG/kcmil | mm2 | Diameter (inches) | Weight (Lbs./ 1000 ft.) | Diameter (inches) | Weight (Lbs./ 1000 ft.) | In Free Air (amps) | ||
| 6 | 12.5 | 1.294 | 918 | 1.539 | 88 | 0.445 | 6 | |
| 4 | 21 | 1.469 | 1252 | 1.773 | 1371 | 116 | 0.3 | 6 |
| 2 | 34 | 1.615 | 1620 | 1.935 | 1847 | 152 | 0.184 | 6 |
| 1 | 43 | 1.746 | 1942 | 2.045 | 2299 | 175 | 0.147 | 4 |
| 1/0 | 54 | 1.845 | 2257 | 2.149 | 2646 | 201 | 0.117 | 4 |
| 2/0 | 70 | 1.996 | 2744 | 2.3 | 2994 | 232 | 0.093 | 4 |
| 3/0 | 86 | 2.081 | 3110 | 2.398 | 3540 | 266 | 0.074 | 3 |
| 4/0 | 109 | 2.222 | 3714 | 2.539 | 3966 | 306 | 0.058 | 3 |
| 262 | 132 | 2.41 | 4486 | 2.789 | 4614 | 348 | 0.048 | 3 |
| 313 | 159 | 2.488 | 4599 | 2.867 | 5614 | 386 | 0.04 | 2 |
| 373 | 189 | 2.659 | 5825 | 3.038 | 5760 | 429 | 0.034 | 2 |
| 444 | 227 | 2.892 | 6946 | 3.27 | 7061 | 455 | 0.028 | 1 |
| 535 | 273 | 3.036 | 7961 | 3.415 | 8297 | 528 | 0.024 | 1 |
| 646 | 326 | 3.249 | 9274 | 3.627 | 9317 | 584 | 0.02 | 1 |
| Size | mm2 | Nominal Diameter (Inches) | Weight (Lbs./ 1000 Ft.) | Ampacity | DC Resistance at 25°C (Ohms/1000 Ft.) | AC Resistance at 90°C, 60Hz | Voltage Drop (Volts/Amp/ 1000 Ft.) | Green Insulated Ground Conductor (3x) Size (AWG) | |
| AWG/kcmil | In Free Air (Amps) | Single Banked in Trays (Amps) | |||||||
| 6 | 12.5 | 1.815 | 1814 | 88 | 75 | 0.445 | 0.556 | 0.82 | 10 |
| 4 | 21 | 2.028 | 2391 | 116 | 99 | 0.3 | 0.376 | 0.564 | 10 |
| 2 | 34 | 2.174 | 2879 | 152 | 129 | 0.184 | 0.23 | 0.359 | 10 |
| 1 | 43 | 2.29 | 3387 | 175 | 149 | 0.147 | 0.184 | 0.294 | 8 |
| 1/0 | 54 | 2.356 | 3551 | 201 | 171 | 0.117 | 0.147 | 0.242 | 8 |
| 2/0 | 70 | 2.477 | 4053 | 232 | 197 | 0.093 | 0.117 | 0.199 | 8 |
| 3/0 | 86 | 2.588 | 4609 | 266 | 226 | 0.074 | 0.094 | 0.166 | 6 |
| 4/0 | 109 | 2.815 | 5393 | 306 | 260 | 0.058 | 0.075 | 0.139 | 6 |
| 262 | 132 | 2.968 | 6218 | 348 | 296 | 0.048 | 0.063 | 0.121 | 6 |
| 313 | 159 | 3.166 | 7126 | 386 | 328 | 0.04 | 0.053 | 0.106 | 6 |
| 373 | 189 | 3.289 | 8121 | 429 | 365 | 0.034 | 0.045 | 0.094 | 4 |
| 444 | 227 | 3.437 | 9035 | 455 | 387 | 0.028 | 0.039 | 0.085 | 4 |
| 535 | 273 | 3.735 | 10585 | 528 | 449 | 0.024 | 0.033 | 0.076 | 4 |
| Size | Number | Unarmored | Armored (B) | Armored and Sheath (BS) | |||
| AWG | Pairs | Diameter (inches) | Weight (lbs/MFt.) | Nominal Diameter (inches) | Weight (lbs/MFt.) | Diameter (inches) | Weight (lbs/MFt.) |
| 18 | 8 | 0.782 | 342 | 0.832 | 468 | 1.027 | 607 |
| 18 | 12 | 0.99 | 533 | 1.04 | 692 | 1.261 | 1089 |
| 18 | 16 | 1.093 | 661 | 1.143 | 843 | 1.338 | 1325 |
| 18 | 18 | 1.23 | 776 | 1.28 | 973 | 1.488 | 1216 |
| 18 | 24 | 1.442 | 958 | 1.492 | 1194 | 1.758 | 1564 |
| 16 | 8 | 0.885 | 448 | 0.935 | 589 | 1.114 | 724 |
| 16 | 10 | 1.03 | 763 | 1.08 | 736 | 1.289 | 1222 |
| 16 | 12 | 1.065 | 631 | 1.115 | 808 | 1.31 | 1014 |
| 16 | 16 | 1.175 | 806 | 1.225 | 1049 | 1.396 | 1237 |
| 16 | 18 | 1.259 | 901 | 1.309 | 1112 | 1.504 | 1317 |
| 16 | 24 | 1.472 | 1120 | 1.522 | 1361 | 1.755 | 1685 |
| 14 | 4 | 0.736 | 324 | 0.786 | 440 | 0.991 | 799 |
| 14 | 5 | 0.772 | 392 | 0.822 | 515 | 1.031 | 678 |
| 14 | 8 | 0.956 | 548 | 1.006 | 736 | 1.18 | 911 |
| 14 | 12 | 1.205 | 851 | 1.255 | 1037 | 1.45 | 1275 |
| Size | Number | Unarmored | Armored (B) | Armored and Sheath (BS) | |||
| AWG | Pairs | Nominal Diameter (inches) | Weight (lbs/MFt.) | Nominal Diameter (inches) | Weight | Diameter (inches) | Weight (lbs/MFt.) |
| 18 | 1 | 0.354 | 69 | 0.404 | 160 | 0.557 | 167 |
| 18 | 2 | 0.649 | 204 | 0.702 | 303 | 0.876 | 430 |
| 18 | 3 | 0.703 | 236 | 0.753 | 345 | 0.927 | 477 |
| 18 | 4 | 0.775 | 316 | 0.825 | 398 | 0.975 | 594 |
| 18 | 5 | 0.889 | 353 | 0.939 | 497 | 1.113 | 658 |
| 18 | 7 | 0.957 | 461 | 1.007 | 614 | 1.202 | 785 |
| 18 | 8 | 1.025 | 589 | 1.075 | 735 | 1.14 | 900 |
| 18 | 12 | 1.221 | 792 | 1.271 | 990 | 1.642 | 1195 |
| 16 | 1 | 0.376 | 81 | 0.426 | 206 | 0.579 | 265 |
| 16 | 3 | 0.76 | 366 | 0.81 | 411 | 1.018 | 571 |
| 16 | 4 | 0.82 | 410 | 0.87 | 457 | 1.001 | 646 |
| 16 | 6 | 0.95 | 628 | 1 | 791 | 1.198 | 1024 |
| 16 | 7 | 1.029 | 524 | 1.079 | 688 | 1.248 | 1026 |
| 16 | 8 | 1.108 | 684 | 1.158 | 793 | 1.312 | 1101 |
| Size | Number | Unarmored | Armored (B) | Ampacity | ||||
| AWG | Conductors | Diameter (inches) | Weight (lbs/MFt.) | l Diameter (inches) | Weight (lbs/MFt.) | 110°C | 100°C | 95°C |
| 16 | 8 | 0.581 | 202 | 0.631 | 289 | 12 | 11 | 11 |
| 16 | 10 | 0.635 | 251 | 0.685 | 322 | 9 | 8 | 11 |
| 16 | 16 | 0.72 | 333 | 0.77 | 441 | 9 | 8 | 11 |
| 16 | 20 | 0.786 | 382 | 0.836 | 514 | 9 | 8 | 11 |
| 16 | 24 | 0.9 | 549 | 0.95 | 646 | 8 | 7 | 11 |
| 14 | 10 | 0.69 | 327 | 0.74 | 403 | 14 | 13 | 15 |
| 14 | 12 | 0.714 | 356 | 0.764 | 449 | 14 | 13 | 15 |
| 14 | 14 | 0.76 | 417 | 0.81 | 549 | 14 | 13 | 15 |
| 14 | 20 | 0.935 | 598 | 0.985 | 708 | 14 | 13 | 15 |
| 14 | 24 | 1.025 | 721 | 1.075 | 829 | 12 | 11 | 15 |
| 12 | 4 | 0.516 | 201 | 0.566 | 247 | 33 | 31 | 27 |
| 12 | 5 | 0.561 | 226 | 0.611 | 315 | 27 | 25 | 22 |
| 12 | 6 | 0.611 | 282 | 0.661 | 397 | 27 | 25 | 22 |
| 12 | 10 | 0.77 | 434 | 0.82 | 509 | 17 | 16 | 19 |
| 12 | 20 | 1.02 | 805 | 1.07 | 942 | 17 | 16 | 19 |
| 12 | 24 | 1.135 | 1033 | 1.185 | 1162 | 15 | 14 | 19 |

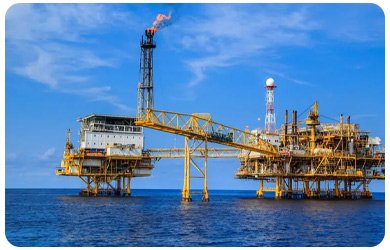

Type P Oil Well Marine Cable Application
